SineWaves Inc. has been formed by a group of like minded friends to cultivate an idea inventor Matthew W. Wright had for a new concept regarding micro-power generation, the Co-Axial Turbo Rotary Engine or CATRE.  With a Patent Pending and a working proof of concept currently undergoing development on our in-house dynamo meter, SineWaves is now looking to develop one its more advanced CATRE Configurations, the CATRE-I.

At the core of the CATRE's technology is the coaxial arrangement of an engine and its turbocharger, a more detailed explanation can be seen below.

 A cross sectional view of the CATRE Proof of Concept CAD model

A cross sectional view of the CATRE Proof of Concept CAD model

Essentially we used the existing architecture of a Wankel style rotary engine,  and modified it by drilling a hole long ways, through the center of its eccentric shaft (aka crank shaft).  Next we utilized the basic design of a turbocharger, but we elongated it so that the compressor housing sat on one side of the rotary engine while the turbine housing sat on the other.  They are connected via a shaft which runs directly through the middle of the crank shaft.  The compressor - turbine shaft is not coupled to the crank shaft, so each device is allowed to operate run at it's individual speed.

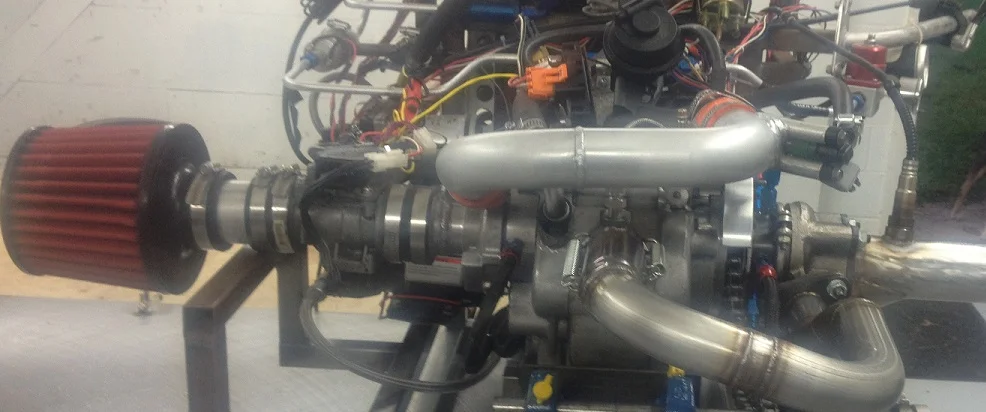

Below, the CATRE proof of concept, can be seen.  This is the "first draft" engine we designed and built in order to really get our head around understanding the fundamental challenges of designing & building a co-axial turbo rotary engine.  This iteration is sized to produce around 75hp and by itself, weighs about 50 lbs.

 The CATRE proof of concept engine.

The CATRE proof of concept engine.

The integration of the turbocharger co-axially with the rotary engine is what inherently facilitates the architecture's power density and simplicity. This architecture allows for a significant reduction in the number of components necessary to manufacture a downsize boosted engine.  Further enhanced by the nature of a "Wankel" style rotary combustion chamber, and the valve architecture.

By integrating the turbo directly into the engine system, we can eliminate costly oil, fuel, and water lines to both components.  These features and many other can be machined directly into the assemblies housings.

This video briefly describes the Co-Axially Turbo Rotary Engine (CATRE) technology. The CAD being shown in the video is the proof of concept CATRE developed by SineWaves and inventor Matthew W. Wright.
